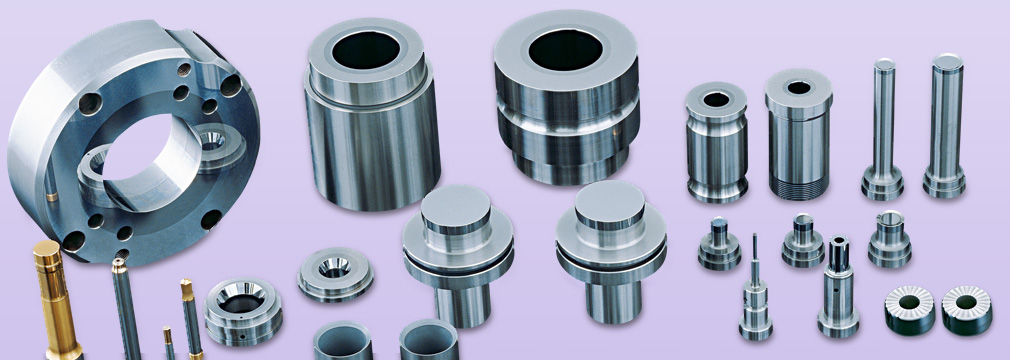

Wear Resistant Tools
Backed by our long experience and expertise in this area, the superior quality of our molding dies and punches with high wear resistance meet the needs of many customers in the automotive, electronics, chemical, medical, and other industries.
Products can be made-to-order, from the development of materials to the production of finished products, to satisfy your needs.
Powder molding dies
Uses: Resin, ferrite, medicine and health food, metallic powder, ceramic, etc.
Wear-resistant dies, tools, and powder feed contact
Uses: Die-cutting, deep-drawing dies, rolls, cutting blades.
Grade selection table of Wear Resistant Tools
Powder molding dies
Use Grouping |
Grade |
Hardness (HRA) |
T.R.S. (GPa) |
Density |
Z01 |
ZTN2 |
94.1 |
3.0 |
14.0 |
Z01 |
ZN01 |
93.1 |
3.5 |
14.3 |
Z10 |
ZN15 |
92.0 |
3.0 |
14.2 |
K01 |
KN05 |
92.6 |
2.6 |
14.8 |
V20 |
G3 |
91.1 |
3.2 |
14.9 |
V30 |
G4 |
90.0 |
3.3 |
14.6 |
V40 |
G5 |
89.4 |
3.5 |
14.3 |
V50 |
G6 |
88.6 |
3.6 |
14.0 |
V50 |
G7 |
85.0 |
3.0 |
13.5 |
Wear-resistant dies, tools, and powder feed contact
Use Grouping |
Grade |
Hardness (HRA) |
T.R.S. (GPa) |
Density |
E5 |
EN12 |
83.5 |
2.7 |
13.5 |
V30 |
G4 |
90.0 |
3.3 |
14.6 |
